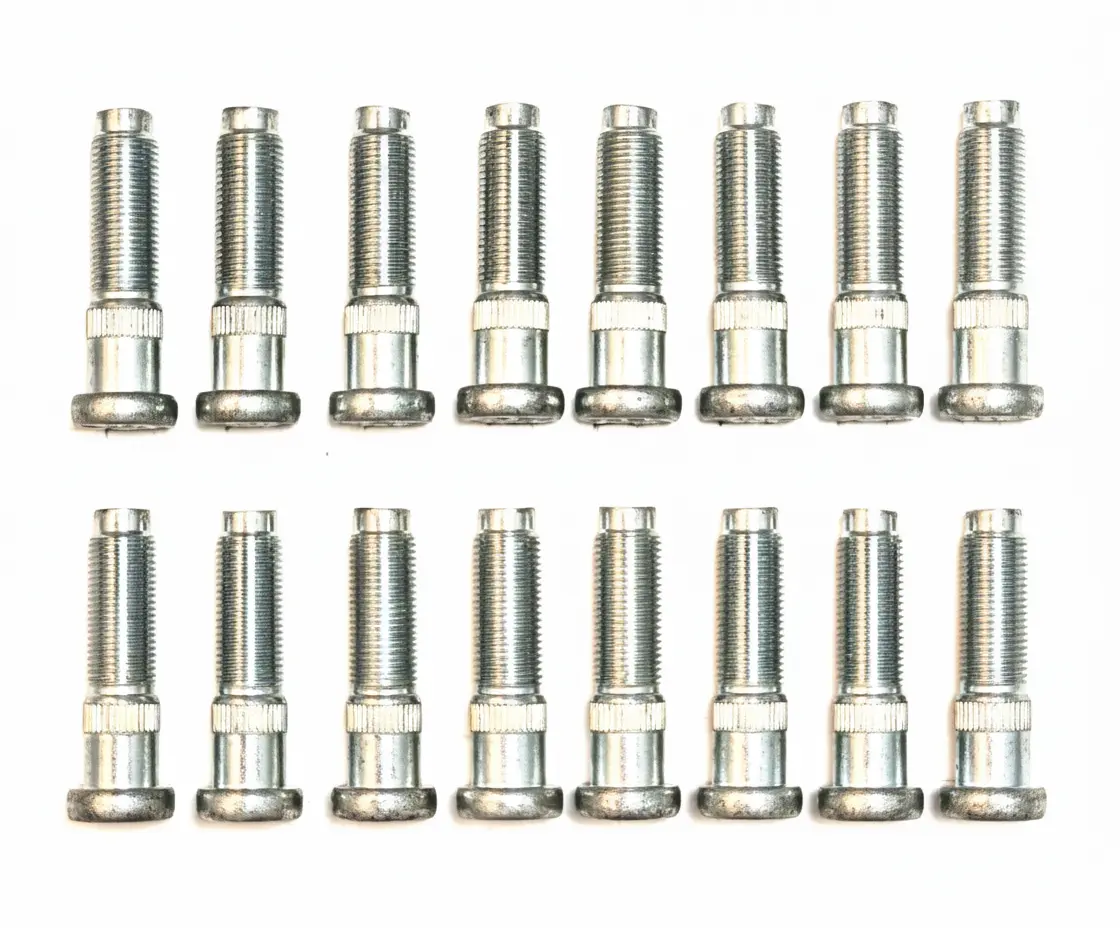

14-bolt semi-float wheel studs for 3/4 ton and 1-ton GM trucks

Replacement Wheel Studs – 14-Bolt Semi Float

$64.00

Wheel Stud Summary Specs:

  • Head Diameter: 0.862 in
  • Knurl Diameter (In): 0.619 in
  • SAE or Metric: SAE
  • Shoulder Diameter: 0.600 in
  • Shoulder Length (In): 0.750 in
  • Thread Diameter: 9/16
  • Threads Per Inch: 18
  • Thread Size: 9/16-18 in
  • Thread Length (In): 1.35 in
SKU: GM14SF-M14-916 Category:

Description

14-Bolt Semi-Float Stud Tech Specs:

  • Bolt Grade: 8
  • Color: Silver
  • Head Diameter: 0.862 in
  • Knurl Diameter (In): 0.619 in
  • Material: Steel
  • Quick-Start Nose: Yes
  • SAE or Metric: SAE
  • Shoulder Diameter: 0.600 in
  • Shoulder Length (In): 0.750 in
  • Style: Serrated Stud
  • Thread Diameter: 9/16
  • Thread Direction: Clockwise (Right)
  • Threads Per Inch: 18
  • Under Head Length: 2.300 in
  • Thread Size: 9/16-18 in
  • Thread Length (In): 1.35 in

Additional information

Disc Brake Wheel Studs

M14x1.5 (Metric), 9/16×18 (Standard)
